Prefabricated Secondary Leads and Extension Cords - KDC501

Store/EFLA Prefabricated Secondary Leads
AU$20.47

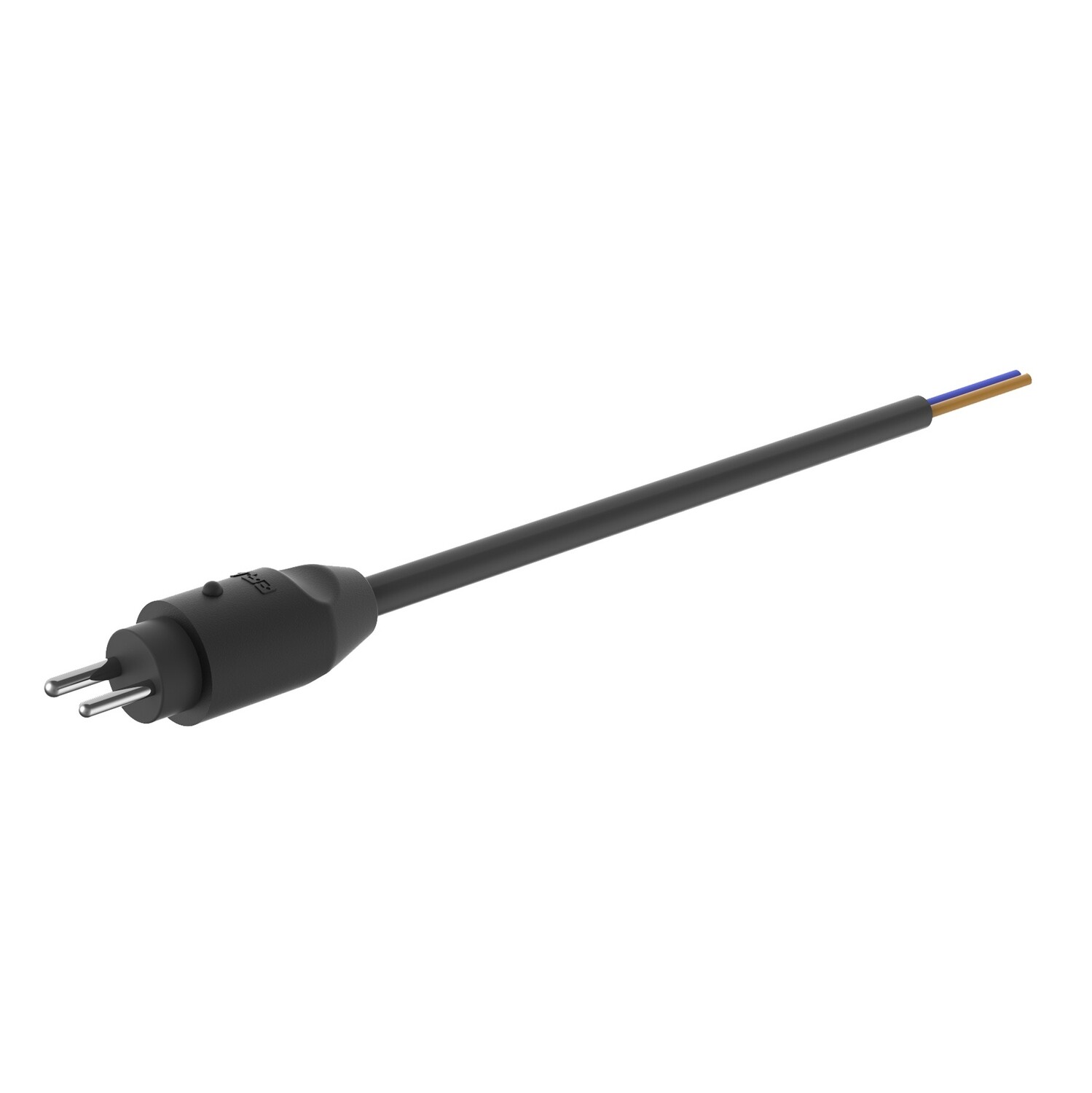

KDC501- Secondary plug - Style 1
Share this product with your friends
Pin it
Prefabricated Secondary Leads and Extension Cords - KDC501
Store/EFLA Prefabricated Secondary Leads
Product Details

CURRENTLY ON BACK ORDER - CONTACT FOR AVAILABILITY

Main benefits

  • Easy and fast installation
  • Wide range of product offer
  • Compliance with international standards
  • Customized Leads according to customer needs - Available on direct order.

    • The leads are available with two-core cables or with two single core wires. The latter is available even with higher temperature resistant wires.

    Cable information for secondary leads

  • Two core cable
  • Dual insulation: EPR-insulated & TPE-sheathed
  • Core insulation: special EPR compound
  • Outer sheath: halogen free TPR compound (IEC 60752-2 / EN 50267-2-3)
  • Copper conductors, Class 5 (IEC 60228) • Size options: 1.5 mm2, 2.5 mm2, 4 mm2 • Nominal voltage: 600 V
  • Temperature range: -40 ºC to +120 ºC (-40 ºF to 248 ºF)
  • Short term short circuit temperature resistance 300 ºC (570 ºF)
  • Bending radius: 5D
  • FAA L-824 certified
  • Fulfills specifications: MIL-C-3432, MIL-C-4921 & ICEA S-66-524

    • Extension cords:

    The types above can be made to a specific length, with plug on one end and receptacle on the other. For example KDCE501.4.3000 (4 mm2 and

    Other products in the series are available for purchase on direct order, contact us today for a quote.

    All datasheets and further information for these and more EFLA products can be found at https://www.efla.net/datasheets
